SE-020 Marginal Lubrication Bushing

Click here to more table size

SE-020

SE-02Y

SE-02S

SE-02L

SE-02SP

SE-02WC

Products

SE-020 is triple-layer self lubricating material that can filI modified POM plastic as su rface layer; it is benignant boundary Iubrication materiaI, therefore, it is particularly applicable high-load low-speed rotating and wing movement, as well as in the condition that frequent loaded start-stop is the requirement while hydrodynamic lubrication membrane is difficult to form, in the parts such as bearing, thrust washer, sliding block, ball socket and so on. SE-020 can take full advantage of less grease to work long time without lubrication maintenance under boundary Iubrication condition. But under oil-free condition, SE-020 the frictional behavior and permissible PV value ls relatively low, so generally storage pit can be formed on the plastic surface, where lithiumbased lubricant grease or silicone grease and so on should be applied when being installed.

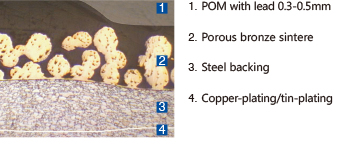

Material Structure

Applications

Note: Various materials are suitable for SE-020 series products according to different working conditions, such as bronze-backing, stainless steel backing and lead-free material. SE-02Y is an environmental friendly lead-free product and its color is yellow.

Products are widely used in:

Pedal assembly, balance bushings, brake calipers, steering main pin sets and truck tailgate bushings, truck, crane, car cranes, forest machinery, packaging machinery, construction machinery, hydraulic motors, agricultural machinery mining machinery, metallurgical machinery, irrigation machinery, automobiles, and steel rolling industries.

SE-020 Tech. Deta

The use of parameters

SE-020

SE-02Y

SE-02S

SE-02L

Marginal Bearing

Lead Free Marginal Bearing

Lead Free Marginal Bearing

Lead Free Marginal Bearing

Parameters

Max load capacity P (Static)

250 N/mm²

250 N/mm²

250 N/mm²

250 N/mm²

Max load capacity P (Dynamic )

140 N/mm²

140 N/mm²

140 N/mm²

140 N/mm²

Max line speed V (Grease )

2.5m/s

2.5m/s

2.5m/s

2.5m/s

Max imum PV value (Grease )

3  N/mm².m/s

3  N/mm².m/s

3  N/mm².m/s

3  N/mm².m/s

Friction coef μ (Grease )

0.05~0.25

0.05~0.25

0.05~0.25

0.05~0.25

Working  temperature

-40℃~+110℃

-40℃~+110℃

-40℃~+110℃

-40℃~+110℃

Thermal  conductivity

4 W/(m.k)

4 W/(m.k)

4 W/(m.k)

4 W/(m.k)

11×10-6/k

11×10-6/k

11×10-6/k

11×10-6/k

Coefficient of linear expansion
