SE-500 Solid-lubricating Inlaid Bushing

Click here to more table size

Products List

SE-500A

SE-500B

SE-500C

SE-500D

SE-500E

SE-500F

SE-500G

SE-500H

SE-500I

SE-500J

SE-500K

SE-500L

Products

Material Properties

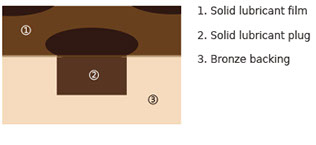

Oilless or low-oil-contained lubrication means less fuel without refueling, the goal of our research is to ensure that the bearing in such conditions can have good performance and extend its life as much as possible. When self-lubricating bearings are running, the solid lubricants on its surface form a lubricating film by mutual friction .It avoids direct contact between the workpiece and thus well protected against wear parts to extend the service life of the bearings and the workpiece.

● Allows maintenance-free and long-life operation;

● Suitable for high static and dynamic loads;

● With low and smoothly coefficient of friction and without stick-slip effects;

● Suitable for dirty, corrosion, impact load and edge loading;

● The base material provided a good shock-absorbing capacity;

● Can be used over a large temperature range;

● Suitable for reciprocating, rotating and oscillating movement with start frequency and difficulty to form oil film occasions;

● With low wear rate and long life service.

Bearing Feature

The design nowadays requires tremendous demands fro self-lubricating bearing material.Even in the extremely severe work condition and maximum load conditions, it also requires maintenance-free. With the cost of increasing, business equipment reliability and plant operation is also increasing. Metal self-lubricating bearings to meet the long-term maintenance-free and under the conditions of self-lubricating, thus making the design of reliable long-term self-lubricating system possible. Metallic self-lubricating bearing material can be widely used in high load at low speed rotation conditions, swing and linear reciprocating motion, but also applies to the position where traditional lubrication can not be achieved or the ocassion greasing is prohibited, or in special conditions such as dust, shock under load or radiation conditions require long-term and stable use.

Charcateristics

This bearing is a combination of wear resistance and self-lubricating properties of solid copper alloy body of lubricants to use in the process without refueling maintenance. Products are widely used in high load, intermittent or oscillating motion, such as automotive products line, water wheels machine, a reservoir / incident doors, plastic machinery, punch peripherals. Depending on the conditions, the material can be provided with various types of copper alloy.

SE-500 Tech. Deta

The use of parameters

Parameters

High load

Low speed

Commonly used

Low load

High Temp.

Low speed

Low load

High Temp.

Low speed

Cost Saving

Low load

Low speed

Chemical Compositions

CuZn25Al6Fe3Mn3

CuSn5Pb5Zn5

Steel+CuSn6Zn6Pb3

HT250

GCr15

Friction coef

＜16μ

＜15μ

＜14μ

＜18μ

＜17μ

Dilatability

1.6-2.0 10-5/℃

1.6-2.0 10-5/℃

1.6-2.0 10-5/℃

1.7-1.9 10-5/℃

1.6-1.8 10-5/℃

Hardness

210-250HB

80-120HB

60-90HB

180-230HB

HRC55-60

Velocity Max. (dry)

0.4 (m/s)

2 (m/s)

2 (m/s)

0.5 (m/s)

0.1 (m/s)

Velocity Max. (Oil)

5 (m/s)

10 (m/s)

10 (m/s)

5 (m/s)

3 (m/s)

Max PV Value (dry)

1.8 N/mm² - m/s

0.5 N/mm² - m/s

0.6 N/mm² - m/s

0.8 N/mm² - m/s

2.5 N/mm² - m/s

Max PV Value (Oil)

10 N/mm² - m/s

3.8 N/mm² - m/s

3.8 N/mm² - m/s

3.8 N/mm² - m/s

40 N/mm² - m/s

Temperature Max.

300℃

350℃

300℃

400℃

350℃

Applicable conditions

High load

low speed

SE-501

Embeded Solid

Lubricating Bearings

SE-502

Embeded Solid

Lubricating Bearings

SE-503

Embeded Solid

Lubricating Bearings

SE-504

Embeded Solid

Lubricating Bearings

SE-505

Embeded Solid

Lubricating Bearings

Solid Lubricant

Typical application

Suit for general machines under atmosphere

Sl4+MoS2

PTFE+MoS2+CF

Suit for water and seawater lubricanting

Lubricant

Features

SL1 Graphit+add

Excellent resistance against chemical

attacks and low friction, Temp limit 400℃

Lowest in friction and good of water

Lubrication, Temp limit 300℃
